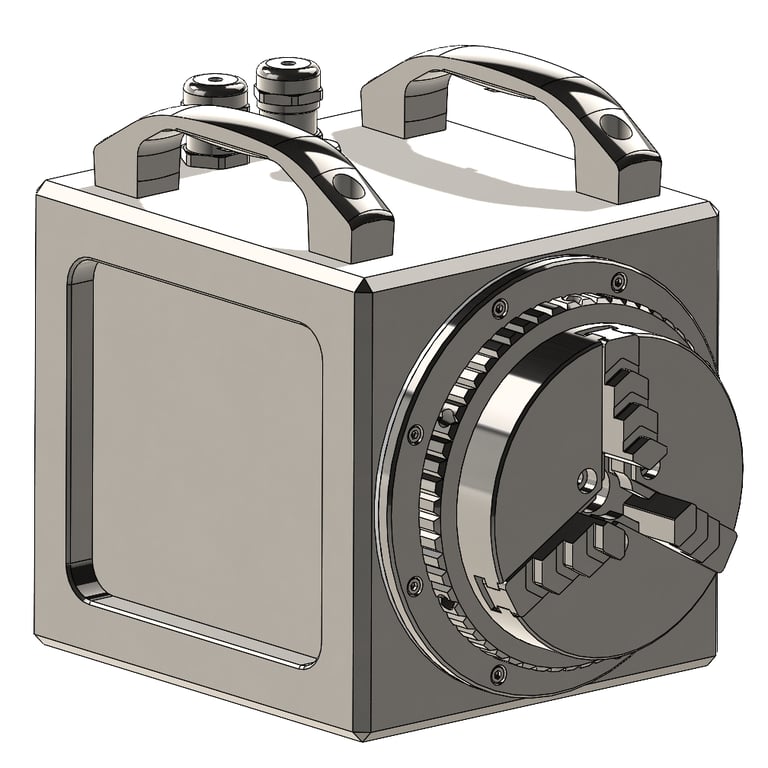

Most compact indexing axis for EDM applications
Rotating and indexing axis
100 HD
high dyn
Material:

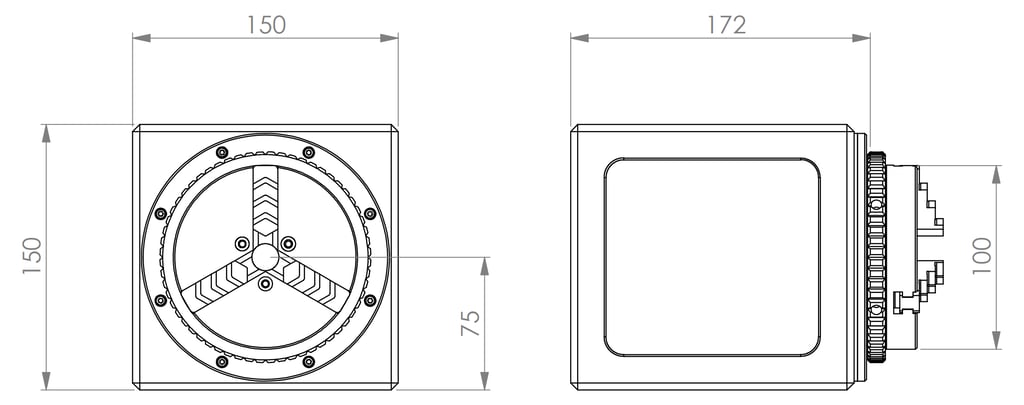

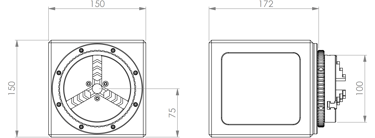

Dimensions (LxBxH):
Weight:
C-axis swivel range:
Speed:
Interface:
Absorbable load:
Peak height:
Sealing air:
Electricity transmission:
Status display:
Sensors:
Protection class:
stainless steel (1.4404)
172x150x150mm
approx. 20kg
360° (endless)
max. 3.000rpm
100mm faceplate with precision
three-jaw chuck or according to customer specifications
10kg
75mm
ja
max. 40A
dynamic LED
integrated temperature and humidity measurement
IP68
Technical data
