For precise machining of workpieces in EDM applications

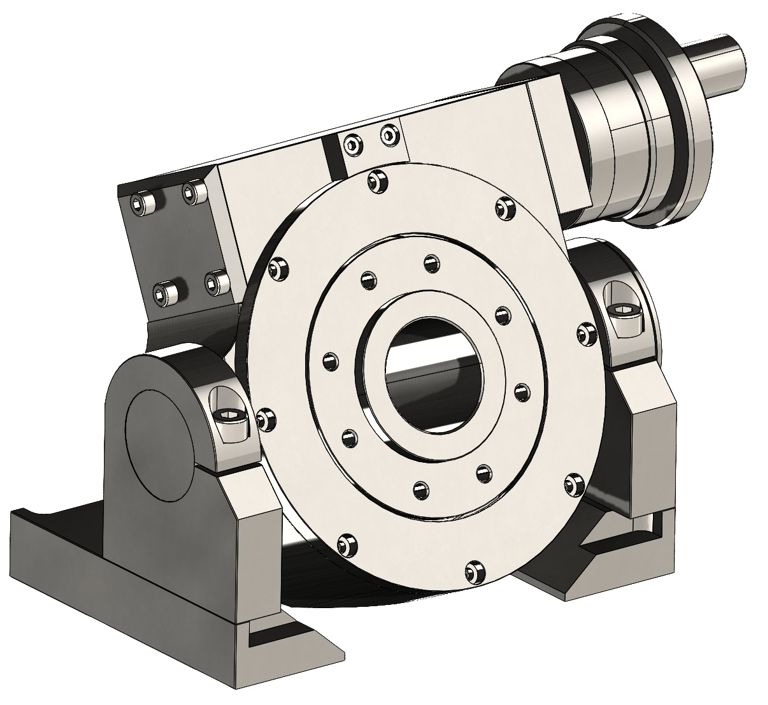

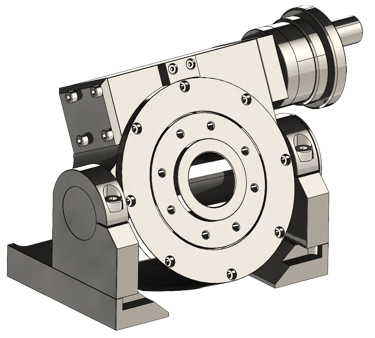

Rotary pivot axis
150 ECO
MANUAL
Material:
Compressive load capacity:

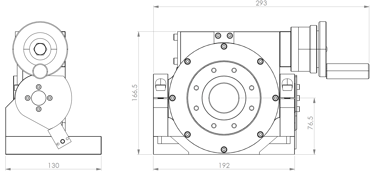

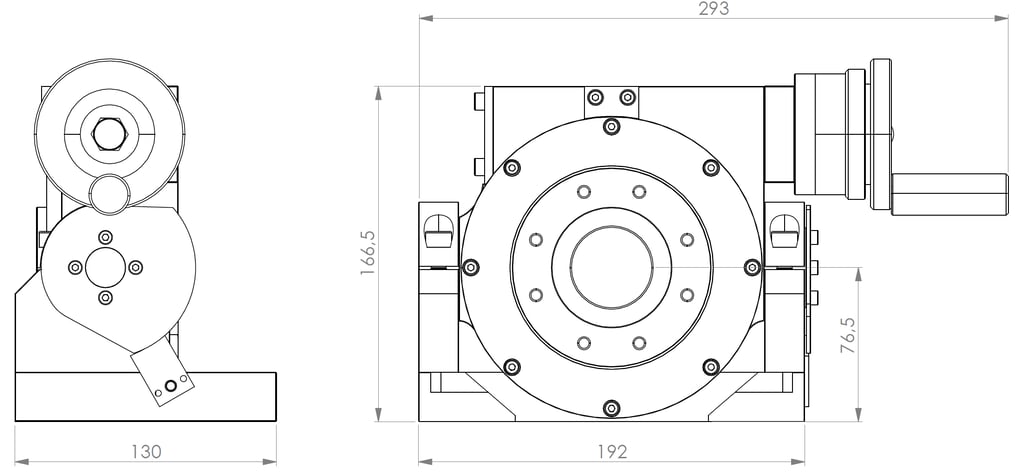

Dimensions (LxBxH):
C-axis swivel range:
A/B-axis swivel range:
Faceplate:
Resolution:
Load capacity:
Axis clamping:
stainless steel (1.4404)
up to 30m
293x130x167mm
360°
0° / 90°
150mm
12''
10kg (static)
mechanical
Technical data
